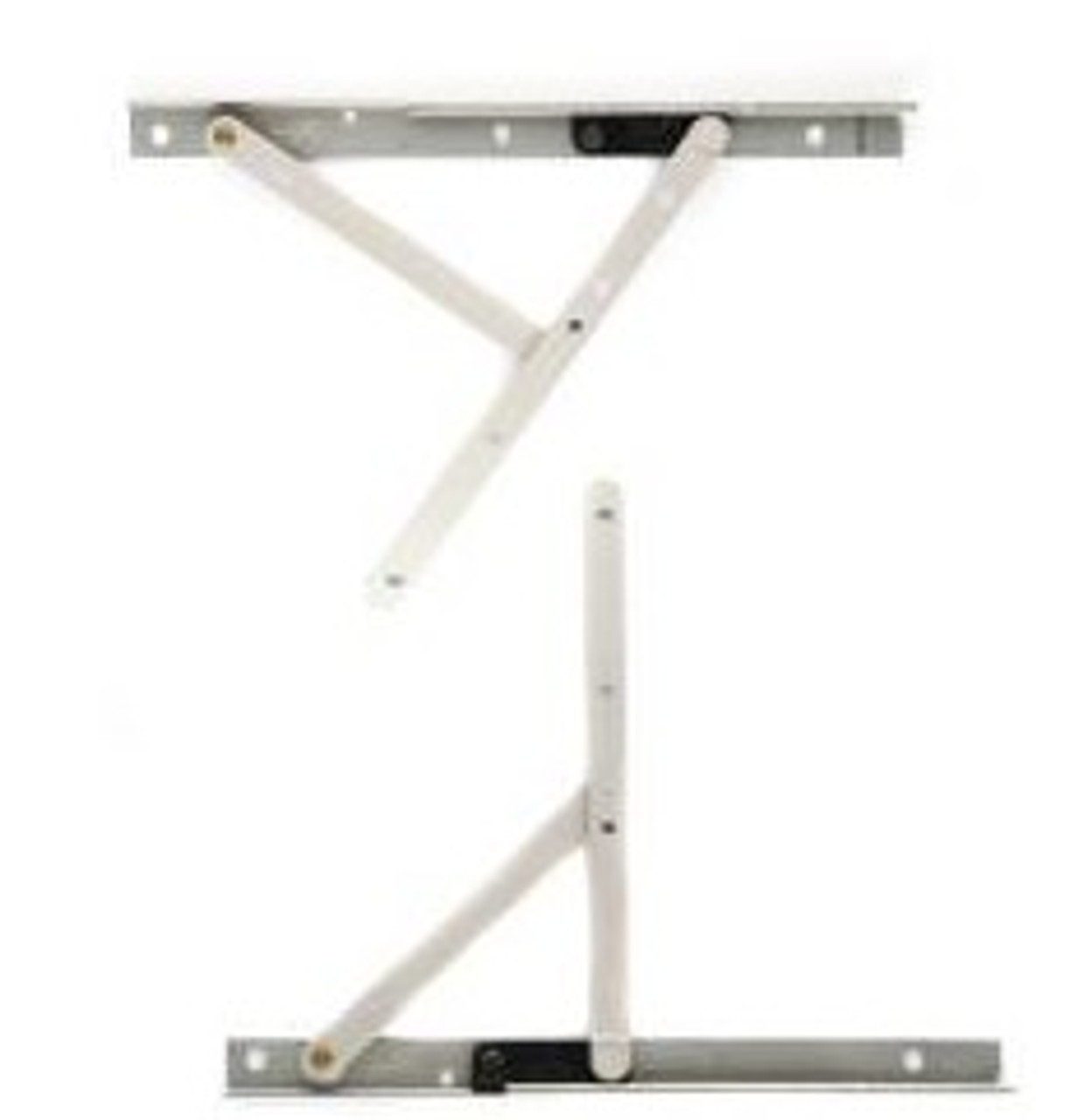

    Windsor "EGRESS" Pinnacle casement Top & bottom set of hinge arms & track - 542040, 542045, 562005, 562006

    Windsor

    MSRP:
    Now: $88.80
    (You save )
    SKU:
    WCSE5
    Weight:
    0.00 LBS
    Shipping:
    Free Shipping

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Overview

    Product Description



    Works With the Following:

     *Windsor Pinnacle casement & Awning windows

     *Windsor Select casement & Awning windows

     *Windsor Legend (PVC) casement & Awning windows

     *Windsor Legend (HBR) casement & Awning windows



    NON STOCK SPECIAL ORDER: Windsor Pinnacle  hinge arm and track fits windows manufactured from April 2006 to present. Sold as kit only which includes top and bottom track, left & right adjustable hinge.  These are non stock special order and can take up to 5 weeks to ship. No returns. This will do one complete casement unit. they are reversible so it does not matter if it is hinged left or right.



    Note: for units that need the unit to open wider to meet fire code. Check your local codes for visible glass width and net clear openings.
